This chapter explains the most important functions for operating the bluetronix software. The software is completely pre-installed and includes a ready-made homepage. You can start editing your website right away.
- The editing mode – login to the CMS
- The main menu
- The edit buttons
- edit page
- Edit record
- Edit Menu - Change the navigation
- Change layout - load ready-made layout
- Shifted display - screen resolution
Open Internet Explorer and go to your website. You can find the domain name in your access data, for example www.yourdomain.de .
In the browser address bar, type after the domain name /to edit one, for example www.yourdomain.de/edit .

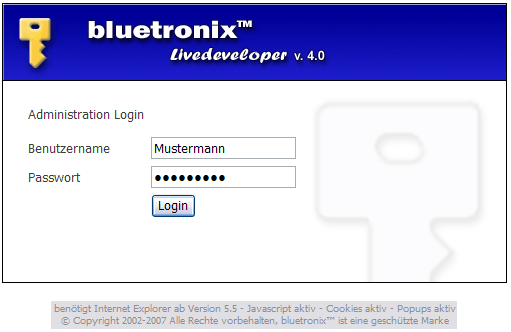

In the login window, enter your username and password and confirm with Log in .
Enter the data exactly as in the access data. Upper and lower case letters are distinguished.

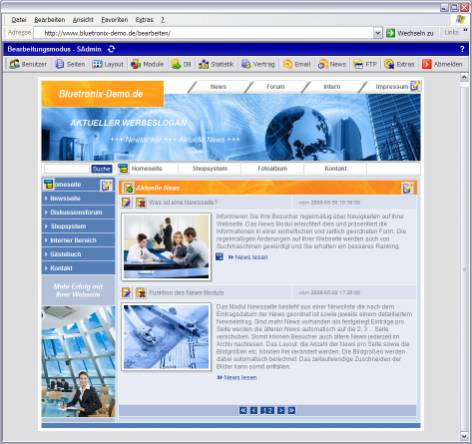

After logging in correctly, the editing mode opens. In the upper part is the so-called main menu, in the lower part your website is loaded in edit mode.
Refresh the view
Help on the current window
User management, create employees, registered users and groups
File management, password protection, upload and download of files
Layout, window layout, colors and background images, CSS settings
Modules such as shop system, guest book, forum, photo album, news page etc.
Databases, database management, import and export, MySQL command prompt
Statistics, access evaluation, individual visitor evaluation, storage space management
Contract, change of contract, change user data, change payment method, domain management
E-mail, e-mail management, webmail, help for setting up Outlook and Thunderbird
Newsletter, send newsletter, newsletter address management
FTP, FTP program, FTP access management
Extras, form archive, page import, font size
Sign out, logout
In editing mode, the homepage has the so-called edit buttons. These make it easier to access various functions. This means you can navigate your website as usual and always edit what you are currently seeing.
Opens the page in the editor
Opens the menu editor
Inserting a record on dynamic pages
Editing a record for dynamic pages
Deleting a record on dynamic pages
If you move the mouse pointer over a button, you will receive further information, for example the file name of the page with the edit button.
In the following example, the "Home" page is to be edited. Navigate to the "Home" page by clicking on Home . To edit the page, click in the top right corner To edit .

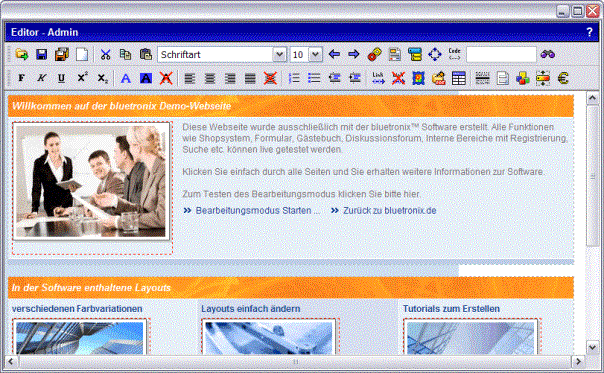

The editor has word processing as well as web-specific functions. You can write text, design it or copy it from other word processing programs.
As usual in word processing, write a sample text or insert an image. Then click to save the page Save on computer Symbol. The page is saved and can now be read by your visitors on the Internet. A detailed description of the editor functions can be found in the chapter The homepage editor .
You can use the edit buttons to change data records just as easily, for example in the shop system, on the news page or in the guest book. In this example, an entry on the news page is to be changed. To do this, navigate to the news page by clicking on news page .

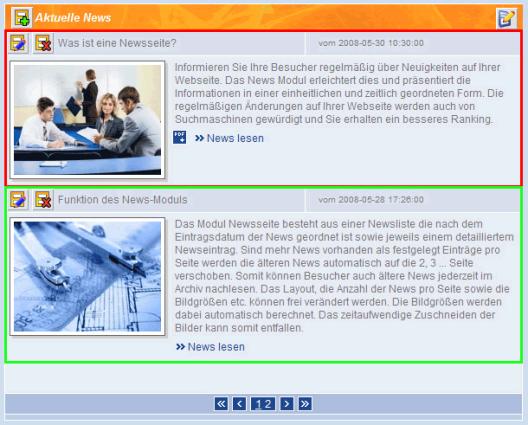

News page with two data sets (data set 1 with a red border and data set 2 with a green border) and the edit buttons

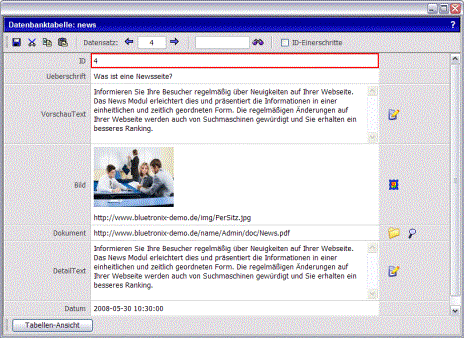

To edit the contents of a record, click in the top left corner Edit record Symbol.
For example, change the headline or swap the image and then click Save on computer . Check the result on the homepage.
Proceed in the same way with the functions Insert new record or.
delete dataset .
The following example shows how to add another menu item to the navigation. In editing mode, as with all dynamic menus, in the top left corner the Edit menu button displayed.
Click on to open the menu editor Edit menu .
In the example, a new menu item with the name "Contact" is to be created below the "News page" navigation point. To do this, click on the point news page and on the icon Insert point below . Click in the new field and enter the name of the menu item, for example "Contact". Finally click on "Save".
In the standard setting, the pages of new menu items are created automatically. Linking and creating the associated page is not necessary.
Close the menu editor and click on the newly created menu item "Contact" on your homepage. Instructions for creating and designing a menu can be found in the chapter dynamic menus .

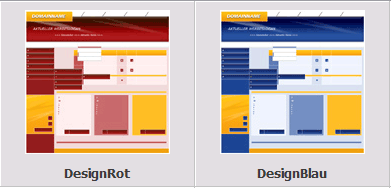

Depending on the web package, additional ready-made layouts are included in the software. Click on the main menu Layout -> Design Templates .
Click on the desired layout and confirm with layout store . Close the layout window and check the result on your homepage.
For an easy way to customize the layout, see Layout -> Style Assistant . Here you can easily change colors, images and background images of the layout.
The bluetronix software includes a comprehensive system for creating and designing the layout. Different layouts on a homepage, for example for different areas or the shop system, are possible. A full one CSS editor , with which objects can be extensively described even without CSS programming knowledge, is included. For more information on creating a layout, see the chapter Create your own layout .
With a screen resolution of 120 dpi or if the font size settings in the browser are changed, the display may shift. In order to use the bluetronix software optimally, you can go to the main menu under Tools -> Editor Font Size adjust the font size.
Set the font size so that the "example text" does not extend over the markings, as shown here.Homepage software chapter selection
